AATCC Viewing Board

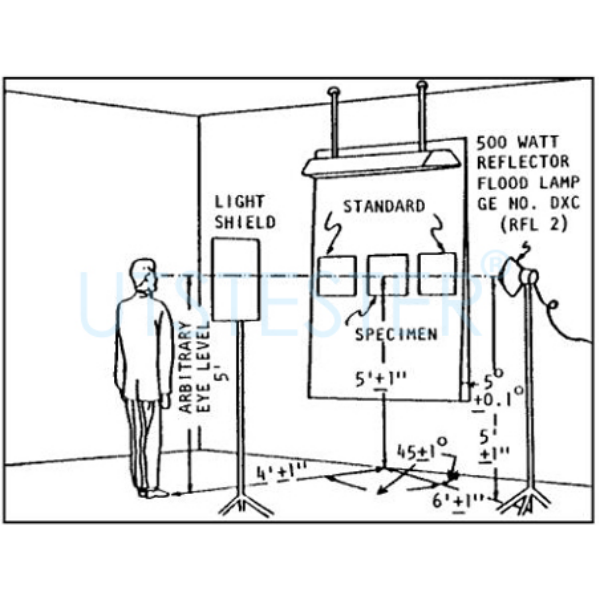

The AATCC Viewing Board is used for the visual evaluation of fabric smoothness and wrinkle appearance, as well as seam appearance after laundering, in accordance with AATCC test methods.

Applicable Standards:

  • AATCC TM 88B
  • AATCC TM 88C
  • AATCC TM 124
  • AATCC TM 128
  • AATCC TM 143
  • AATCC TM 178

Scope of Supply:

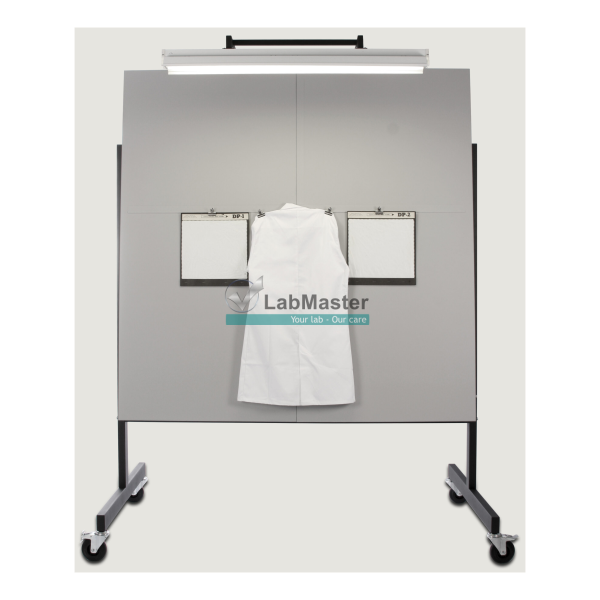

  • Wooden viewing board, size 1.8 × 1.8 m, painted in standard N7 grey (wall-mounted or mobile with casters)
  • Two 2.4 m cool white fluorescent lamps
  • 500 W incandescent lamp
  • Light shield
