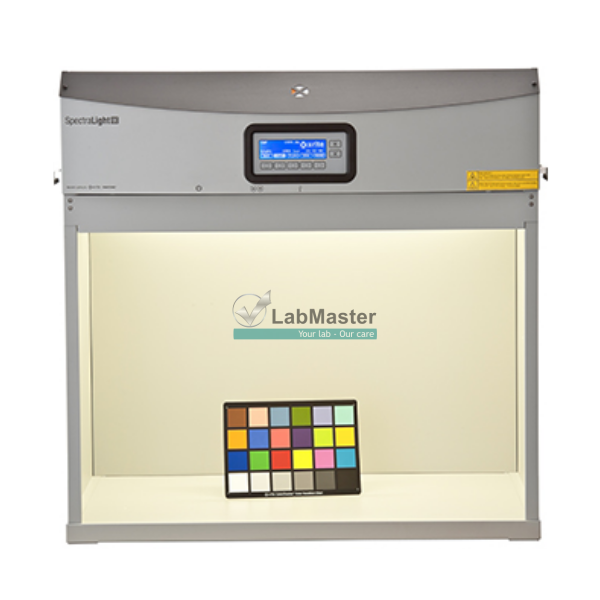

X-Rite SPL QC Color Matching Cabinet (Light Booth)

The X-Rite SPL QC Color Matching Cabinet (USA) is a premium system for accurate visual color assessment under multiple standardized light sources, supporting advanced quality control (QC) processes. With cutting-edge lighting technology and optimized design, the SPL QC is ideal for industries requiring high precision such as printing, textiles, coatings, plastics, and electronics.

Key Features:

Advanced White Light Technology – Multiple Light Sources:

• Utilizes proprietary filtered white light technology to simulate daylight conditions closely matching natural sunlight, ensuring highly accurate color evaluation
• Provides up to 7 light sources, including modern LED options aligned with the latest testing standards

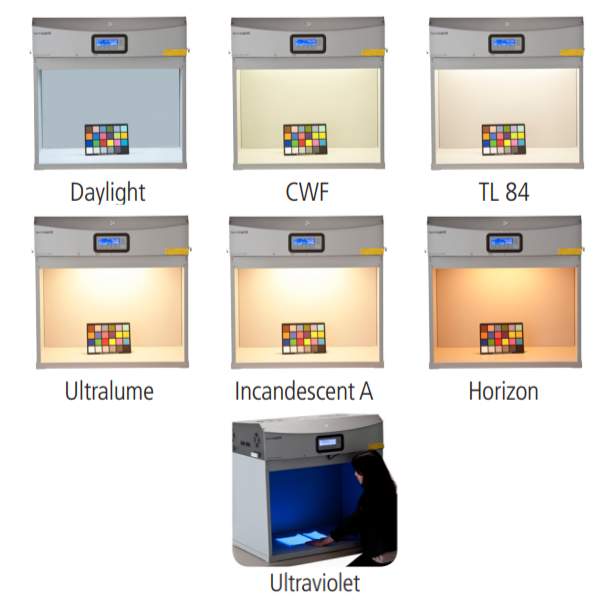

• Supported light sources:
  • D50 / D65 / D75 (daylight)
  • TL84, CWF, U30, U35
  • UVA (for detecting optical brightening agents – OBA)
  • HZ / A (incandescent)
  • LED
• Integrated DualView™ mode allows simultaneous comparison of two samples under the same lighting condition, improving evaluation efficiency

Compliance with International Standards:

• ISO 3664
• ASTM D1729
• AATCC
• SAE J361 (automotive industry)
• Anti-glare technology and neutral viewing glass help minimize visual color deviation

Smart Design:

• Spacious viewing area: 70 × 50 × 40 cm, suitable for large samples or multiple specimens
• Constructed with high-grade steel and anti-reflective coating for durability and stable lighting conditions

Applications:

• Metamerism evaluation: Detect color differences under varying light sources
• Test result assessment: Standard light source for evaluating appearance changes after tests such as pilling, abrasion, and snagging
• Suitable for materials including plastics, textiles, inks, metallic coatings, and materials containing optical brightening agents (OBA)
• Production optimization: Reduce color defects and ensure consistent product quality
