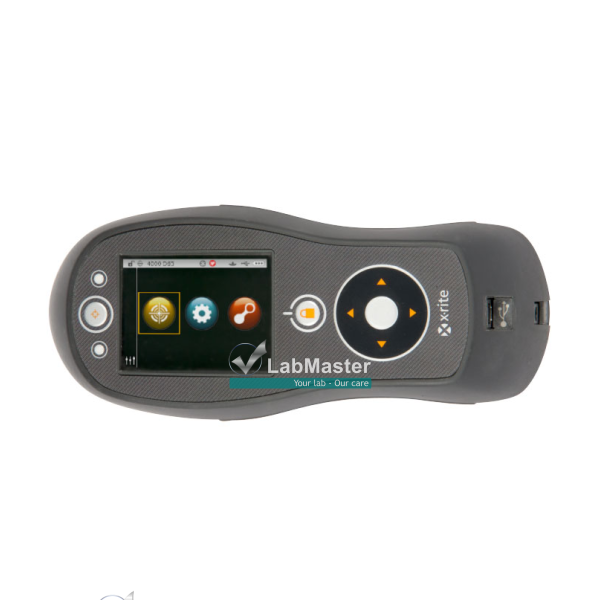

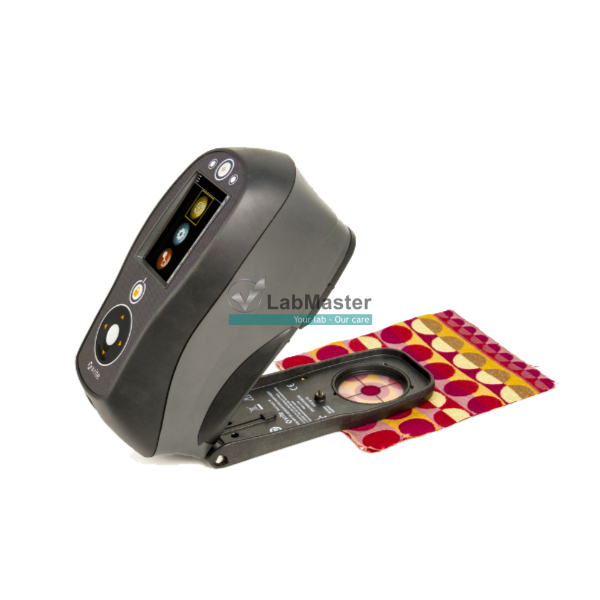

X-Rite Ci6x Handheld Spectrophotometer

The X-Rite Ci6x is an advanced handheld spectrophotometer designed for precise color measurement and management across a wide range of industries, including manufacturing, textiles, packaging, automotive, and interiors. It offers high accuracy, flexibility, and efficient quality control optimization.

Key Features:

Outstanding Accuracy:

• Utilizes d/8° sphere geometry with optional UV LED illumination
• Accurate measurement across various materials: paints, plastics, metals, textiles, including those with optical brightening agents (OBA)
• White repeatability: up to 0.04 ΔE CIELAB (Ci64/Ci64UV), ensuring consistent and reliable results

Flexible Measurement Capabilities:

• Multiple apertures: 4 mm, 8 mm, 14 mm options for different sample sizes
• Simultaneous SCI/SCE measurement (SPIN/SPEX) for both specular included and excluded readings
• UV LED option (Ci64UV) for accurate evaluation of OBA-containing materials

Powerful Software Integration:

• Compatible with Color iQC and Graphical Jobs™ for visual data analysis, color deviation evaluation, automated reporting, and data sharing
• NetProfiler 3 for device calibration management and global instrument standardization

Wide Range of Applications:

• Textiles: Color control on fabrics with OBA under various lighting conditions
• Automotive & Packaging: Ensuring color consistency across components and printed materials
• Plastics & Coatings: Monitoring color variation from raw materials to finished products

User-Friendly Design:

• Compact and portable (~1.1 kg)
• Clear LCD display
• Connectivity: USB / Bluetooth
• Long-life Li-ion battery
• Fast measurement time: ~2 seconds per reading

Available Models in Ci6x Series:

• Ci60: Entry-level solution for standalone QC measurements, ideal for incoming goods inspection with pass/fail indication
• Ci62: Mid-range spectrophotometer for industrial and packaging applications, suitable for textured and metallic surfaces
• Ci64 / Ci64UV: High-end model with simultaneous SPIN/SPEX, gloss correlation, and UV illumination, offering maximum accuracy and versatility with interchangeable apertures
